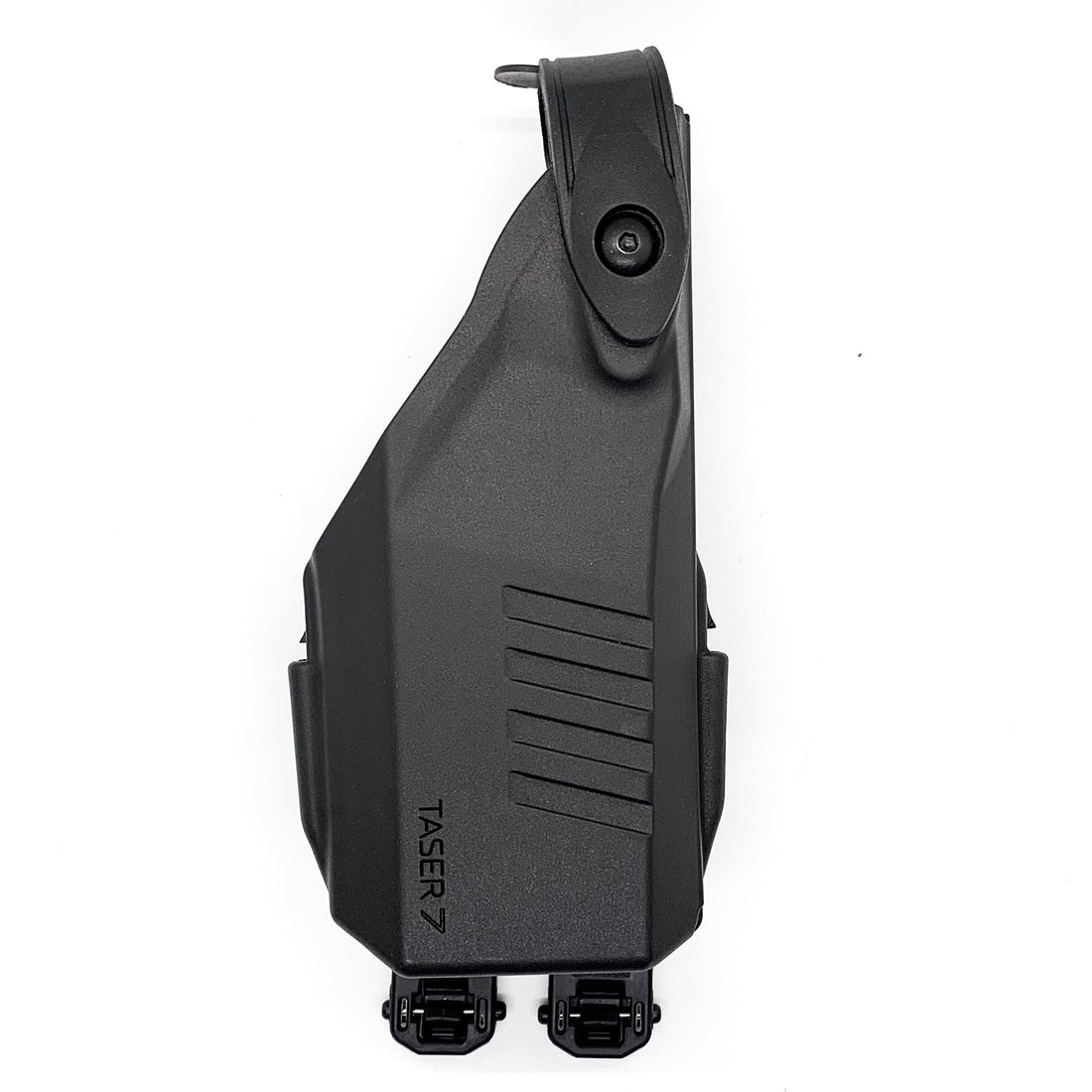

Safariland Taser 7 Molle Adapter Mounting Instructions

Safariland Taser 7 Molle Adapter Mounting Instructions

Product Components:
(1) T7 Adapter Plate with (6) 1/8” threaded posts installed.
(1) 1/8" Allen Wrench
(2) 5/8" Flat Head Screws
(1) 1/2" Flat Head Screw
(6) 5/16" Flat Head Screws
(2) 5” Blade-Tech Molle Loks


Installation:
1. Remove belt attachment with 1/8" allen wrench retaining Safariland threaded posts for step 4.
2. Ensure 6 threaded posts are firmly installed into the T7 plate.
3. Align the T7 plate with the holster, blocking toward the holster.
4. Install 5/8" flat head screws and Safariland threaded posts into top 2 holes.
5. Install 1/2" flat head screw and Safariland threaded post into bottom hole.
6. Attach both Molle Loks to the plate with 6-5/16" flat head screws.

Video instructions can be found HERE

*To adjust the holster cant, you must remove the Molle Loks first.  Adjust the cant by loosening the 5/8” and 1/2” flat head screws for plate mount, set to your cant angle preference and then retighten the screws.  Reinstall
Molle Loks by following the procedure above.

For the best Molle Adapter designed to fit the Safariland Taser 7 holster, shop Four Brothers 4BROS Holsters. Adjustable cant.  Proudly made in the USA.


Step 1: Remove belt attachment with a 1/8" Allen wrench, retaining Safariland threaded posts for step 4.

4BROS Holsters Safariland Taser 7 Molle Adapter Plate

Step 2: Ensure 6 threaded posts are firmly installed into the T7 plate.

Molle Adapter designed to fit the Safariland Taser 7 holster, shop Four Brothers 4BROS Holsters. Adjustable cant.  Proudly made in the USA.

Step 3: Align the T7 plate with the holster, blocking toward the holster.

Molle Adapter designed to fit the Safariland Taser 7 holster, shop Four Brothers 4BROS Holsters. Adjustable cant.  Proudly made in the USA.

Step 4: Install 5/8" flat head screws and Safariland threaded posts into top 2 holes.


Step 5: Install 1/2" flat head screw and Safariland threaded post into bottom hole.

Molle Adapter designed to fit the Safariland Taser 7 holster, shop Four Brothers 4BROS Holsters. Adjustable cant.  Proudly made in the USA.

Step 6: Attach both Molle Loks to the plate with (6) 5/16" flat head screws.

Molle Adapter designed to fit the Safariland Taser 7 holster, shop Four Brothers 4BROS Holsters. Adjustable cant.  Proudly made in the USA.

*To adjust the holster cant, you must remove the Molle Loks first.  Adjust the cant by loosening the 5/8” and1/2” flat
head screws for plate mount, set to your cant angle preference and then retighten the screws.  Reinstall the Molle Loks by following the procedure above.

We STRONGLY suggest using Loctite 242 or Vibra-Tite 121 or VC-3 thread locker on all screws during the final steps of the installation. Once installed with a thread locker, this system will be difficult to unassemble. Please make sure you have it dialed into your personal preference before adding the thread-locking product.

Terms and conditions: By purchasing this product, you take full responsibility for the correct installation of the adapter to your gear. We will not be responsible for incorrect installation.
