High-Performance Weapon Light for Subcompact Handguns
The Streamlight TLR-7 HL-X Sub USB is a compact, high-lumen, multi-fuel weapon-mounted light engineered for subcompact handguns. Delivering up to 1,000 lumens, it ensures optimal visibility in low-light conditions. Its versatile design accommodates various mounting systems, making it compatible with a range of popular subcompact models.
Key Features:
High Output: Up to 1,000 lumens with the SL-B9® USB-C rechargeable battery; 500 lumens with a CR123A lithium battery.
Beam Distance: Reaches up to 200 meters (SL-B9) or 141 meters (CR123A).
Runtime: Approximately 30 minutes (default) or 1 hour (programmable) with SL-B9; 1.5 hours with CR123A.
Multi-Fuel Capability: Accepts both the SL-B9® USB-C rechargeable battery pack and CR123A lithium battery.
Mounting System: Specialized clamp system for secure attachment to various subcompact handguns.
Construction: Crafted from 6000 series machined aircraft aluminum with a black anodized finish; impact- and chemical-resistant polymer switch housing.
Waterproof: IPX7 rated, allowing submersion up to 1 meter for 30 minutes.
Switching: Ambidextrous rear switches for momentary or constant-on operation; user-programmable strobe function.
Safe-Off Feature: Prevents accidental activation, conserving battery life.
Dimensions: Length: 2.51 inches (6.38 cm); Width: 1.16 inches (2.95 cm); Height: 1.24 inches (3.15 cm).
Weight: 2.49 oz (70.6 g) with SL-B9; 2.39 oz (67.8 g) with CR123A.

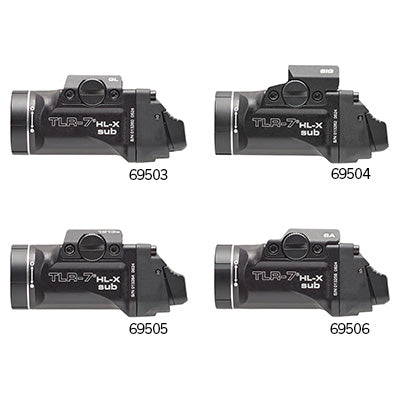

Available Versions:

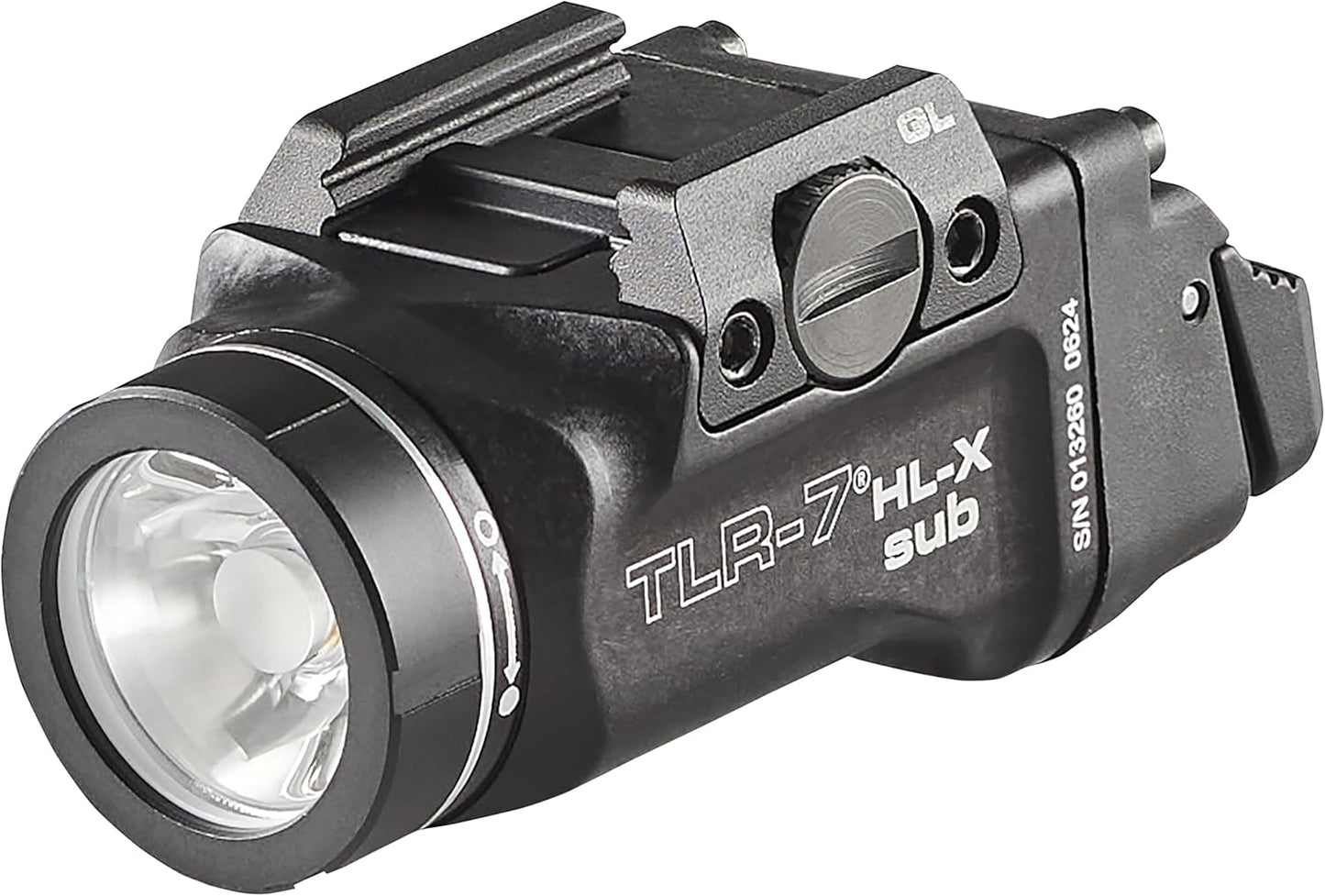

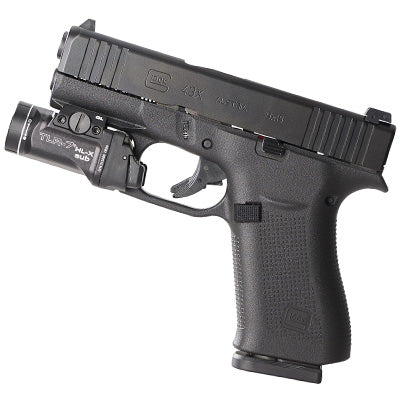

GLOCK® 43X/48 MOS & 43X/48 Rail Models: (Model Number 69503)
Tailored for GLOCK® 43X MOS, 48 MOS, 43X Rail, and 48 Rail subcompact handguns.
Includes mounting kit with key and one SL-B9® rechargeable battery pack.

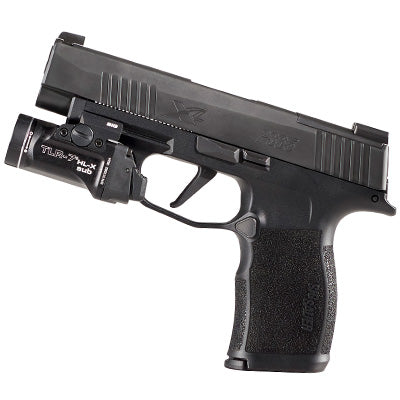

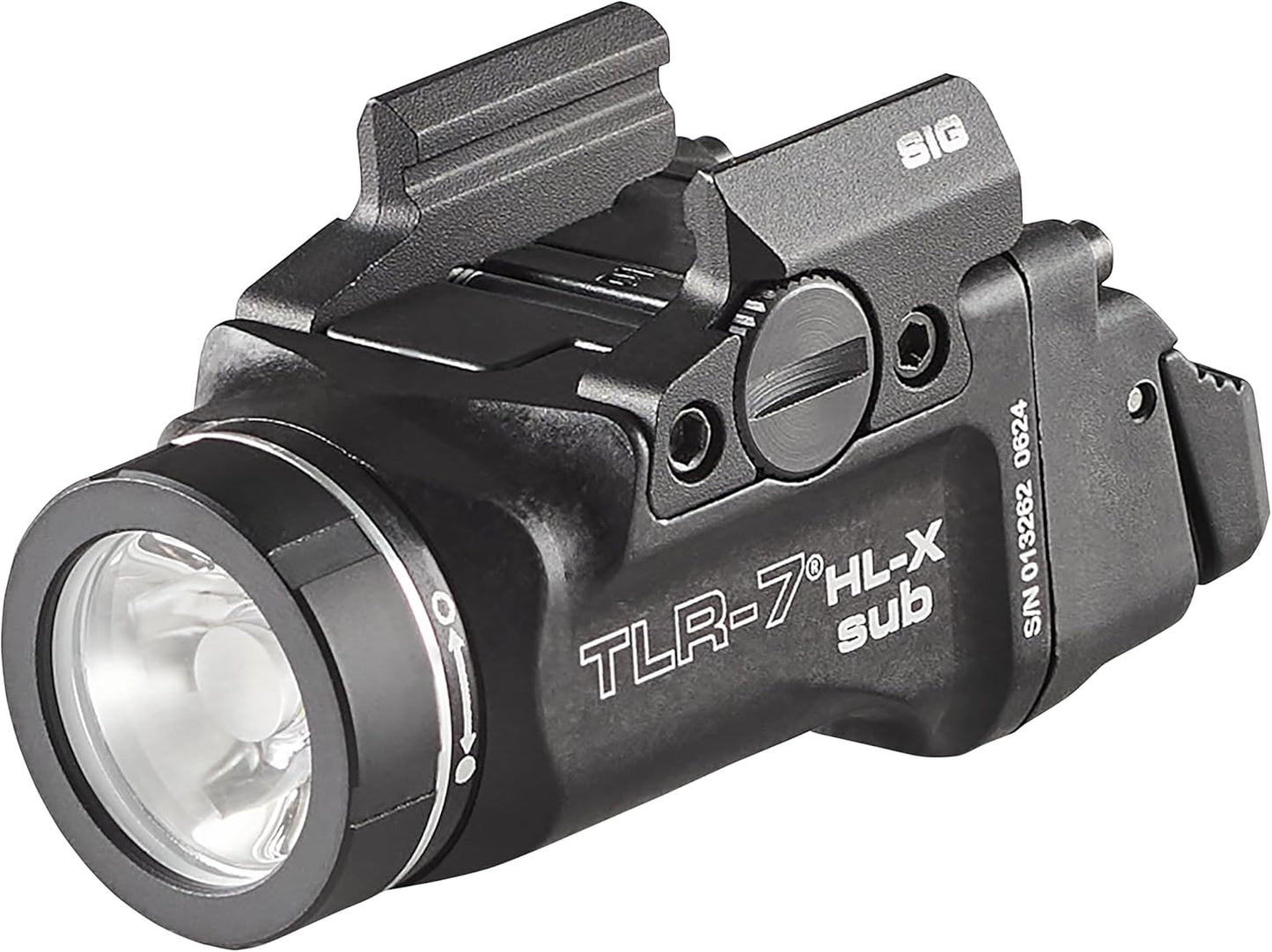

SIG SAUER® P365®/XL Models: (Model Number 69504)
Designed for SIG SAUER® P365® and P365® XL closed rail systems.
Includes mounting kit with key and one SL-B9® rechargeable battery pack.

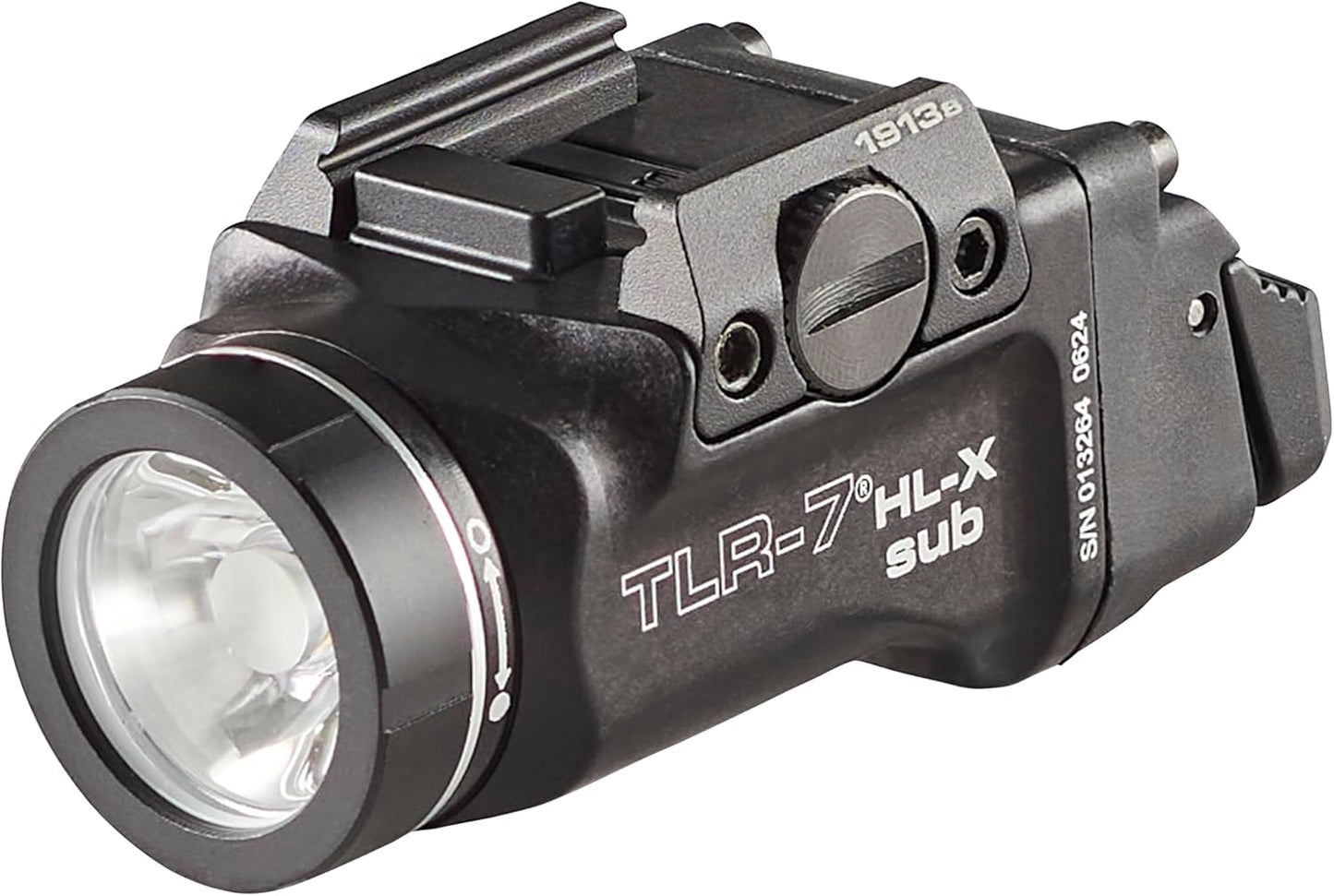

1913 Short Railed Subcompact Handguns: (Model Number 69505)

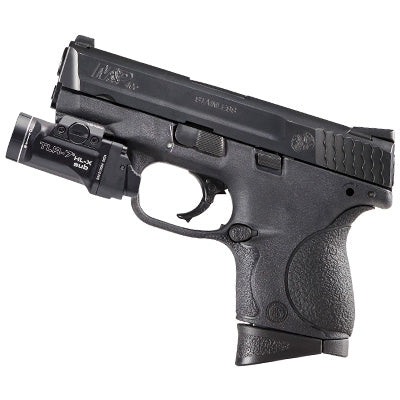

Compatible with Smith & Wesson M&P M2.0 subcompact, Beretta Px4 Storm subcompact, Springfield Armory XD-E, XD-S, Hellcat Pro, Heckler & Koch HK45 compact, SIG SAUER P365 XMACRO, P365 FUSE, and many more.
Includes mounting kit with keys and one SL-B9® rechargeable battery pack.

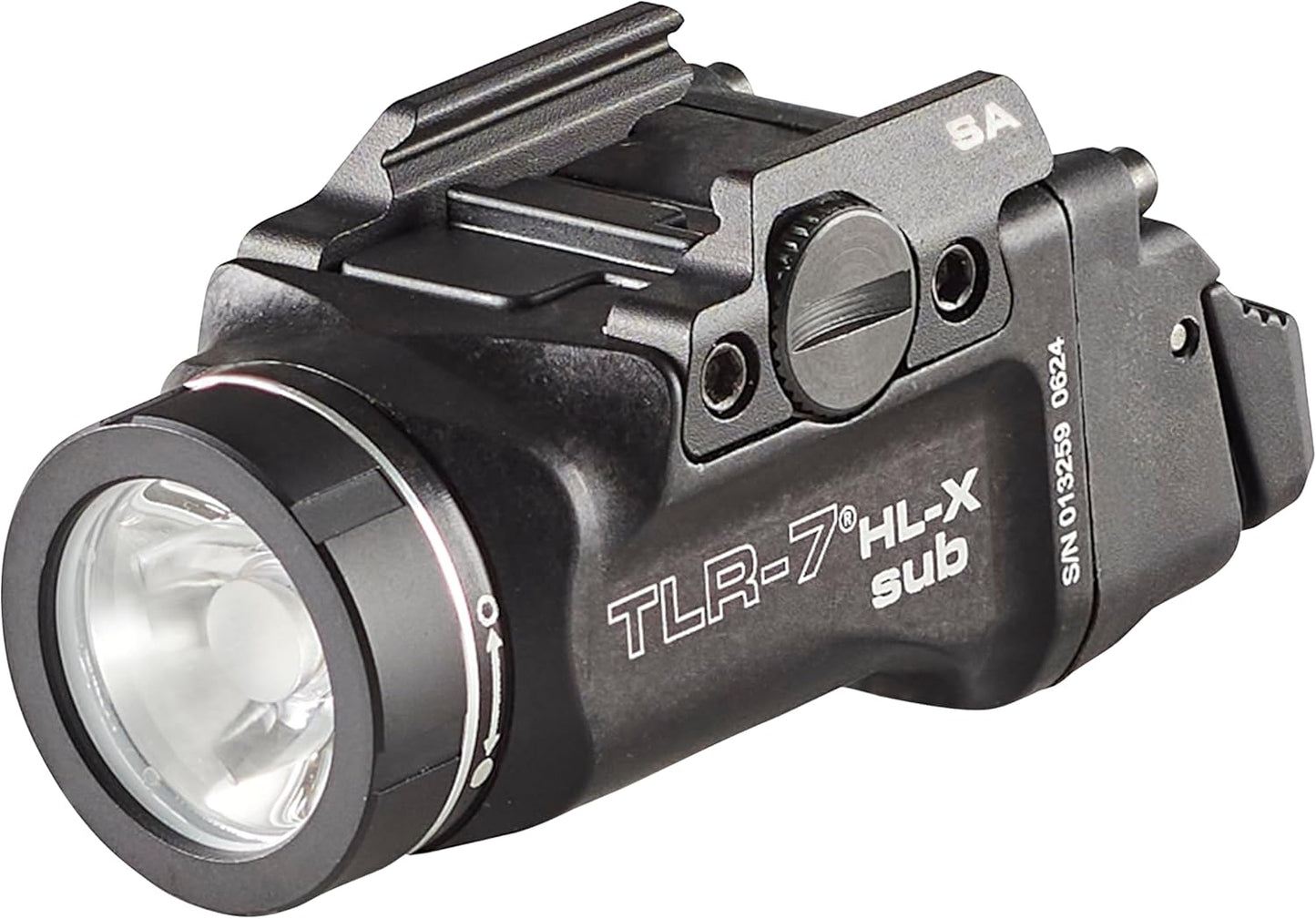

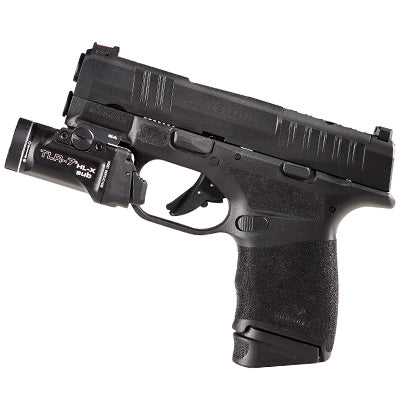

Springfield Armory® Hellcat® Models: (Model Number 69506)
Specifically designed for Springfield Armory® Hellcat® subcompact handguns.
Includes mounting kit with key and one SL-B9® rechargeable battery pack.
Included in the Box:
Streamlight TLR-7 HL-X Sub USB Weapon Light
One SL-B9® USB-C rechargeable battery pack
USB-C charging cable
Mounting kit with appropriate keys

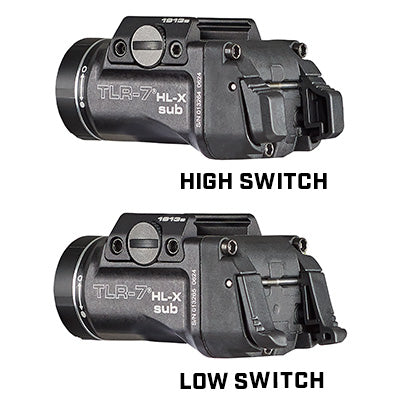

User-interchangeable "High" and "Low" rear paddle switches
Operator's Manual
For more information to determine which version fits your pistol, please contact our customer service team.
Our TLR-7 Sub versus TLR-7 X Sub (and TLR-7 HL-X) Article has a good amount of information available regarding the fit of each model of these lights.
